Evaporator

EVAPORATOR

post
post

South Pole Evaporators are manufactured with cutting edge technology and 3D modeled compact design with easy servicing facilities. Our Evaporator ensures to deliver desired temperature and long lasting in performance.

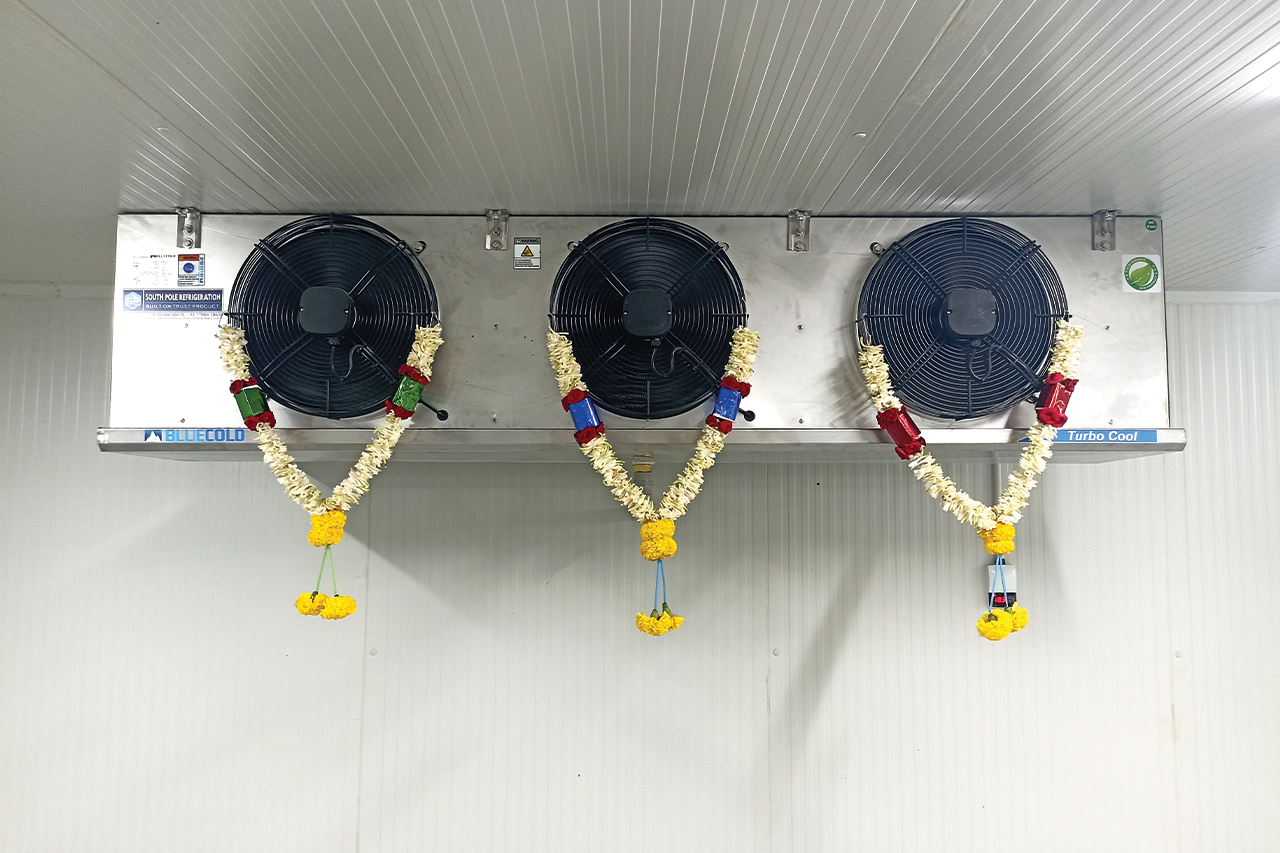

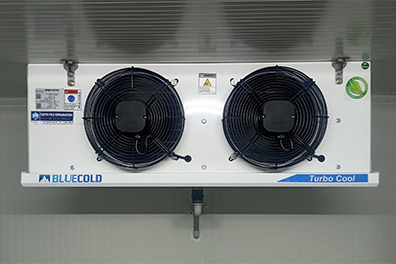

South Pole Refrigeration offers Ceiling Mounted Evaporator for Walk-In Chiller & Walk-In Freezer, Floor Mounted Evaporator for Blast Freezer.

Salient Features:
  • 1. Cooling capacity range from 1.2kw to 60kw.
  • 2. Operating Phase – Single / Three
  • 3. Unit Body – Aluminium powder coated, Stainless Steel 304, GI Powder coated body , Corrosion resistance & nice appearance in nature.
  • 4. Fan – Axial fan (or) Tube axial fan for High air flow, Reliability, Low temperature resistance & Low noise external rotar fan. Fan stramer to increase air flow ( On Demand)
  • 5. Coil – High efficiency heat exchange with in line tube system for minimum loss of air flow between fans and large surface area for better cooling, Smart coil circulating for low pressure drop, Bullet expansion on tubes
  • 6. Defrost – Auto defrost on both coil & tray, Drain Heater. Defrosting system with electric, water or hat gas for freezer room.
  • 7. Rippled fin edges for creating turbulence in air flow and better heat transfer.
  • 8. Fin spacing from 4mm to 10mm to reduce frost formation.
  • 9. Sine wave fin surface for effective cooling
  • 10. Double drip tray for low condensation to minimize air leakage
  • 11. Expansion valve (On Demand)
  • 12. Ceiling mounting clamps for easy installation
  • 13. Maintenance – Compact adjustable & easy openable side panels for easy installation, Service.
